The ISC V2 Basic coilover has all the great features of the ISC V2 N1, but has rubber isolated top mounts instead of a camber plate/pillowball application in the front. Many street enthusiasts may not need to have adjustable camber plates, so the ISC V2 Basic was made in order to simplify the product and eliminate any feature that may not be used for your average street car that is not going for track performance or aggressive camber/stance. This also allows us to offer the ISC V2 Basic coilover at a lower price point to our customers without sacrificing quality.
When applicable our V2 N1 and V2 Basic kits will include updated adjustable end links (check application guide to determine adjustable end link eligibility).
Spring Perch Isolator Pads: Revised hardened spring perch isolator pads reduce friction, allowing for more efficient preload adjustment and a longer product lifespan. Copper based anti-seize lubricant now included for coilover setup/installation.

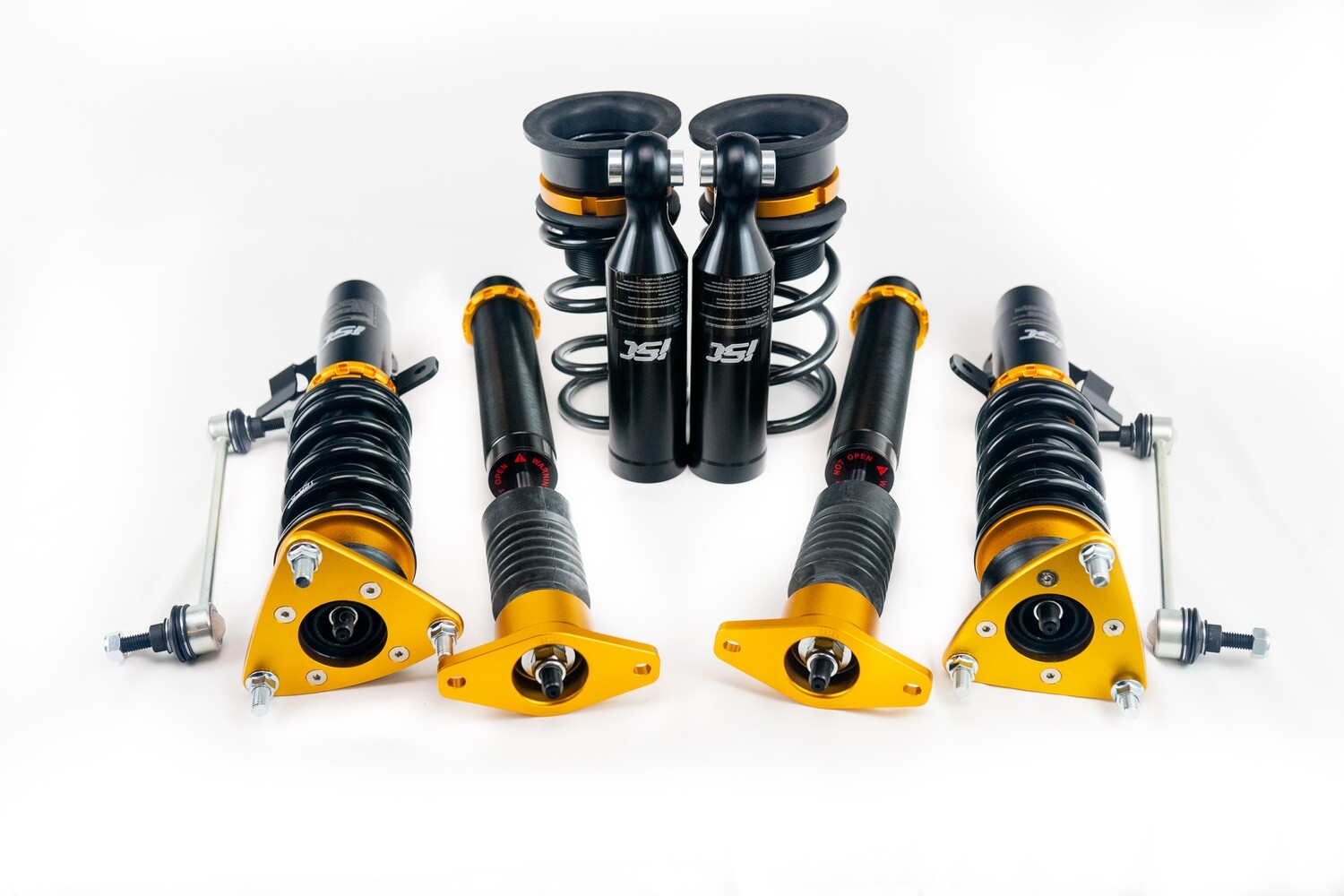

ISC V2 Basic Coilover Details
Single Cylinder Design
Mono-tube damper with high pressure nitrogen. Larger cylinder and piston design to advance driving stability and dexterity.
Threaded portion of shaft is powder coated then salt spray coated for optimum street durability (we suggest also using anti seize or other protective products when you install your coilovers for even further protection from the elements if you are exposed to snow and salt).
Certifications
ISO9001:2000R Certified
ARTC Certified
Warranty
ISC Suspension offers a LIFETIME WARRANTY to the original purchaser against defects in workmanship and material. For more info please refer to the ISC Warranty page.
32-Way Damping Adjustability
Rebound/Compression adjusted in unison via 32-way adjustment knob.

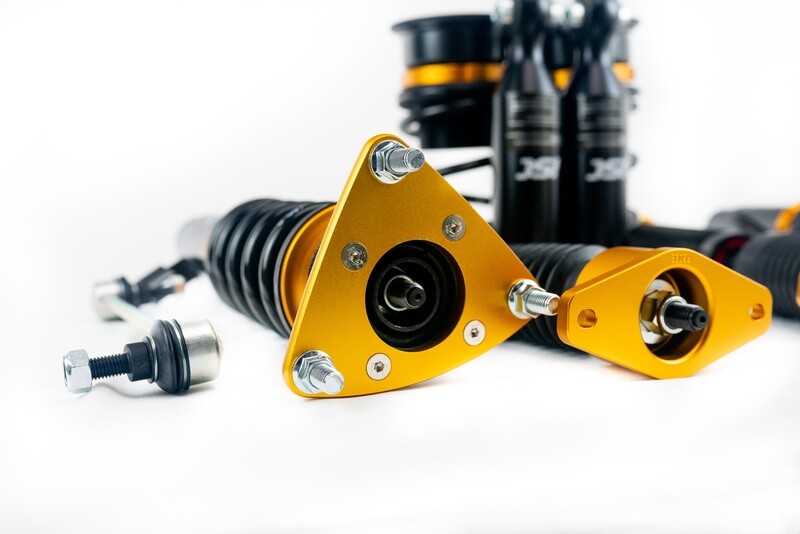

Basic Upper Top Mount
T6061 anodized aluminum top plate with isolated rubber bushing for better road compliance.
Piston Design
High rigidity steel piston rods. Meets with race/sport standards. Shafts are valved according to the spring rate. A shock dyno is used to ensure quality and consistent results.
ISC Springs
Made from high quality SAE9254 steel. Dyno tested over 500,000 times on compression inspection with less than 5% deformation.
Fully customizable spring rates (spring rates vary depending on application, custom spring rates are available).
Ride Height Adjustable
Full length height adjustability of up to 3 inches on most applications. High quality T6061 aluminum alloy used for all adjustment locks to provide a lightweight design that holds spring and vehicle down force.
Bound Adjustable with Separate Spring Locks
Preload is separate from ride height; the lower you go, the ride quality stays the same.
