Application & Install Guides

Coilover Installation Guides and Various Adjustments Guides

Popular Video Guides

NEW: S197 Mustang Install

VW Install

Thrust Bearing Maintenance

Adjust ISC N1 Coilover Preload

Adjusting the 19mm Top Nut

ISC 15/25mm Wheel Spacer OR Adapter

Dampening Adjustment

Rear LCA Pillowball Greasing

See All Video Guides

How to Adjust Preload

ISC SUSPENSION N1 COILOVER DO NOT COME PRELOADED FROM THE FACTORY.

We recommend a preload of 5mm on all corners of the suspension. To set this, you will need to compress the spring using the large gold collar. Simply tighten this up until it stops spinning. You can then take a measurement of the spring. This should yield you 0 preload. From here you need to compress the spring an additional 5mm.

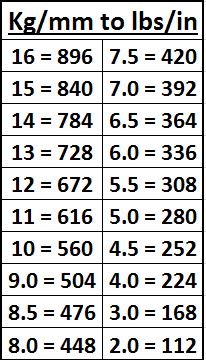

A quick way to be able to know the length of your spring is to look at it. On the spring is a series of number. Example, 18008. This means the spring is 180mm with an 8kg spring rate. The first three numbers are the length. You may also see 200, 140 etc.

If you add 5mm of preload to a 180mm spring you will have an end result of 175mm. This is the proper preload measurement.

Once you have finished setting up your preload, make sure to tighten the smaller locking gold collar against the large collar to keep your preload from changing.

Does your car seem too bouncy? Is your car too stiff or bottoming out easily? Check the preload!

If you have any questions, comments or concerns please contact us at 603-715-9078 or [email protected]

Also our FAQ page has additional installation support-  https://iscsuspension-na.com/isc-faq/
